PLASTISOL WALL FLASH 70MMX3M BLACK

Metal Wall Trim for Flat Roof Flashing

The perfect replacement for traditional lead flashing. Designed to work with EPDM roofing systems. Fast and easy to fit into brick chases, suitable for DIY.

High quality, plastisol coated metal flashing trim available in black. Ideal for EPDM roofing projects where longevity and reliability are key.

• Fitted in minutes & lasts for years
• Perfect for EPDM roofing
• Ideal replacement for lead flashing trim

Specifications:

• 3m length
• 20mm x 70mm profile
• Vertical fix

Options Available:

• Black

Features and benefits of the Permaroof flashing trim:

• Replace traditional lead flashing trim for good
• Plastisol coating
• Easy to fit and does not require special installation expertise
• Prevents water ingress down the back of the membrane
• Requires no maintenance
• High quality, long-lasting design and manufacture

Applications:

• EPDM Rubber Roofing

Customer Service and Delivery

• Orders placed before 12pm will be processed the same day for fast delivery (Mainland UK).
• Collection available from Alfreton, Derby by appointment.
• For further product information or after sales service please contact our friendly team by phone, email or chat

TRADE CUSTOMERS

Contact our team to discuss setting up your trade account. Benefit from preferential pricing, a dedicated account manager, samples and marketing materials and much more. Give us a call now on 01773 441 947.

Installation

How to fit the Permaroof metal flashing trim

PermaRoof’s metal wall flashing trim is fast and easy to install. Follow our step-by-step instructions or download your installation guide in PDF format below.

Additional supplies:

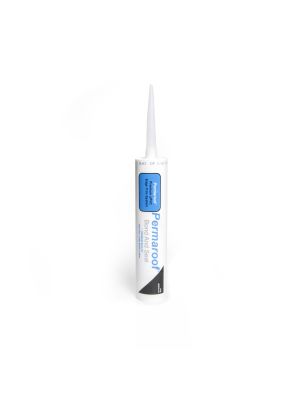

• Permaroof Bond and Seal
• Ultrabond applicator
• Ultrabond

Warning: take extra care using power tools when working at height.

STEP 1. Grind out the chase, using an 8mm thickness blade.

STEP 2. Bond the EPDM up the wall, leaving it just short of the chase.

STEP 3. Apply Ultrabond to the reverse of the Permaroof wall flashing trim, ensuring a continual 5mm bead.

IMPORTANT: To avoid any warping in hot weather, it is crucial you apply the Ultrabond adhesive to the reverse of the trim. It is as strong as a mechanical fix, and the trim will warp if not used as advised.

STEP 4. Insert the wall flashing into the chase, gently using your palm of your hand to put it into situ. The Ultrabond will sandwich between the flashing and the EPDM, ensuring adhesion. This also acts as a water block to stop any water ingress from the bottom of the trim.

STEP 5. If you need to use more than one wall flashing, always allow a 3mm gap and make a joint clip out of a 50mm section of wall trim. Cut off the ‘Fir tree’ part and insert at the back of the wall flashing. Simply butt the next trim up but remember the 3mm expansion space.

STEP 6. Seal up the chase with the Ultrabond. This gives it the finishing touch and ensures a first class seal.

JOB COMPLETE

Downloads and Resources

Watch: Video Installation Guide - Step-by-Step
